GEA REDGENIUM

One of the most efficient solutions for heating temperatures up to 95 °C / 203 °F.

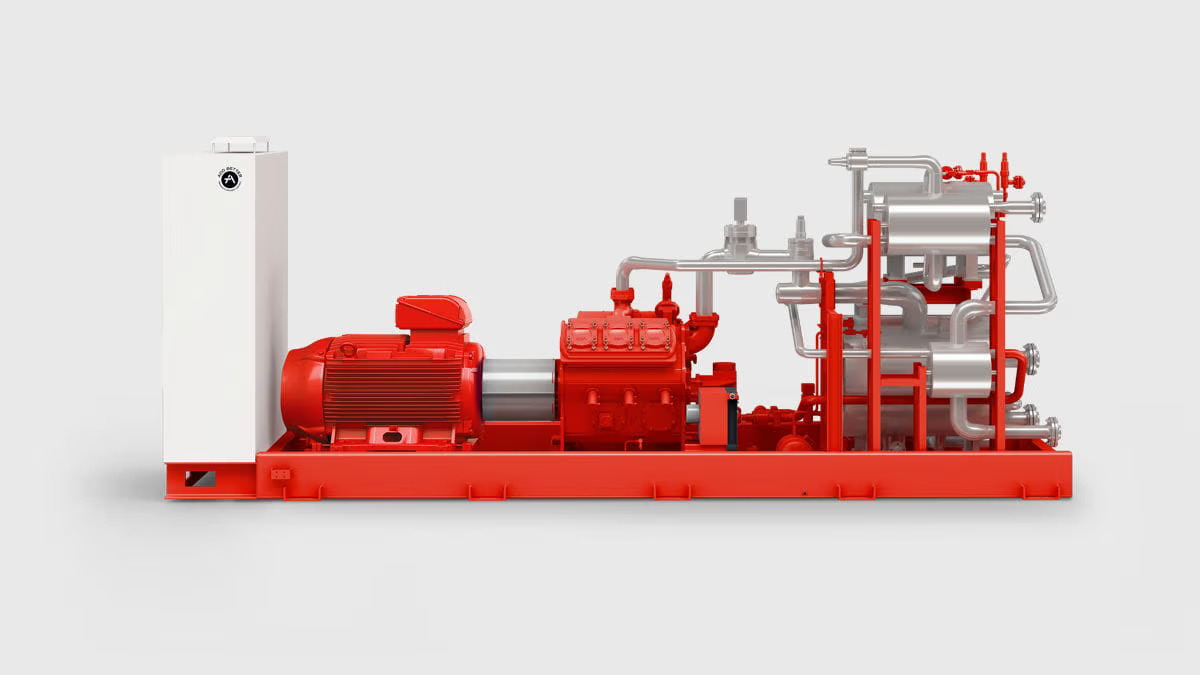

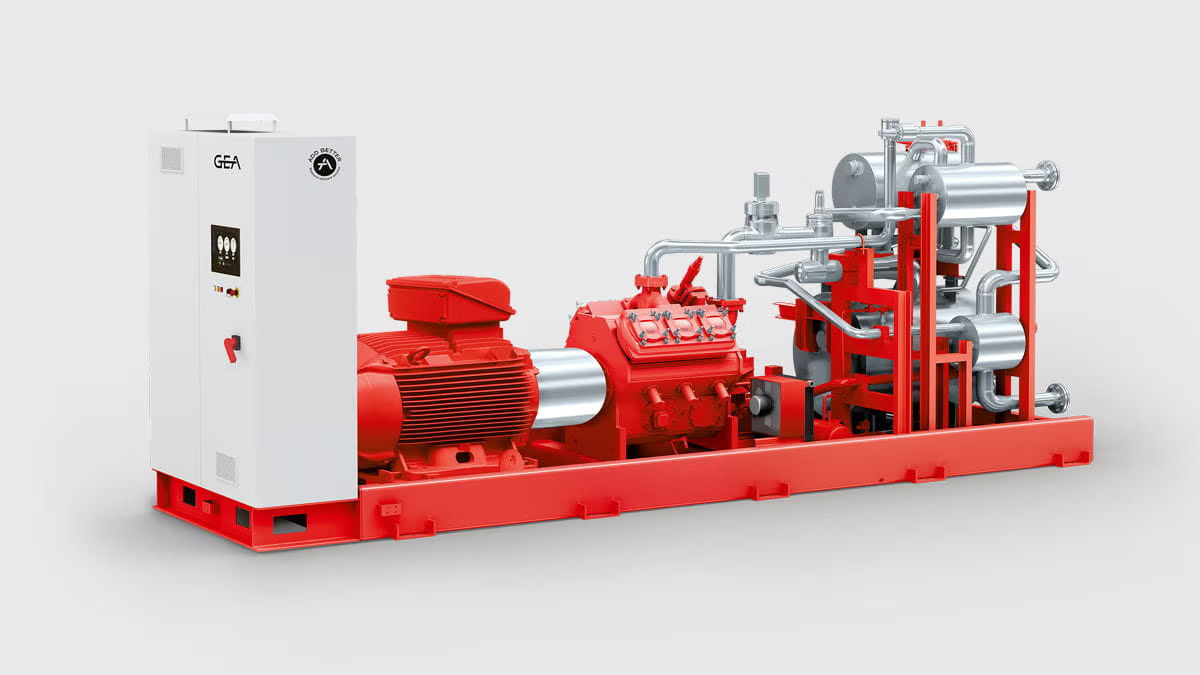

The GEA RedGenium is a compact heat pump for small to medium and up to slightly higher heat loads. At its heart are now three different reciprocating compressor series completing a total range of 11 models.

The brand-new GEA Grasso V XHP reciprocating compressor series features four super-efficient sizes. They provide twice the capacity than the existing types and a maximum supply temperature of 95°C / 203°F making the GEA RedGenium the only standard reciprocating heat pump to reach this temperature level. Thanks to the large temperature and pressure lift that V XHP technology allows, the series is fit for combined refrigeration and heating applications as well as for heating only using low-temperature heat sources, from cold environments for example.

The existing, efficient GEA Grasso V HP reciprocating compressor line remains available in three different sizes – the perfect, cost-effective match for medium capacity applications up to 70°C / 158°F supply temperature.

The implementation of the proven GEA Grasso 5 HP line, featuring four small-sized models, enables the GEA RedGenium to be efficiently used for smaller heat loads and temperature levels of up to 80°C / 176°F.

Aligned to the successful GEA BluGenium chiller design and equipped with heat exchangers configured and optimized according to each project’s requirements, the GEA RedGenium utilizes low ammonia charges and occupies a small footprint while delivering reliable efficiency.

Thanks to the enhanced supply temperature and capacity range, GEA RedGenium heat pumps are used in industrial applications where process heat is needed or fed into a local or district heating network.

Every GEA RedGenium can use any liquid heat source up to 50°C / 122°F (V XHP models up to 60°C/ 140°F inlet), for example wastewater, surface water and ground water, or with a liquid secondary refrigerant for combined cooling and heating applications. The GEA Grasso V HP and the new V XHP models even allow heat sources below zero providing secondary refrigerant outlet temperatures down to -10°C / +14°F for combined refrigeration demands.

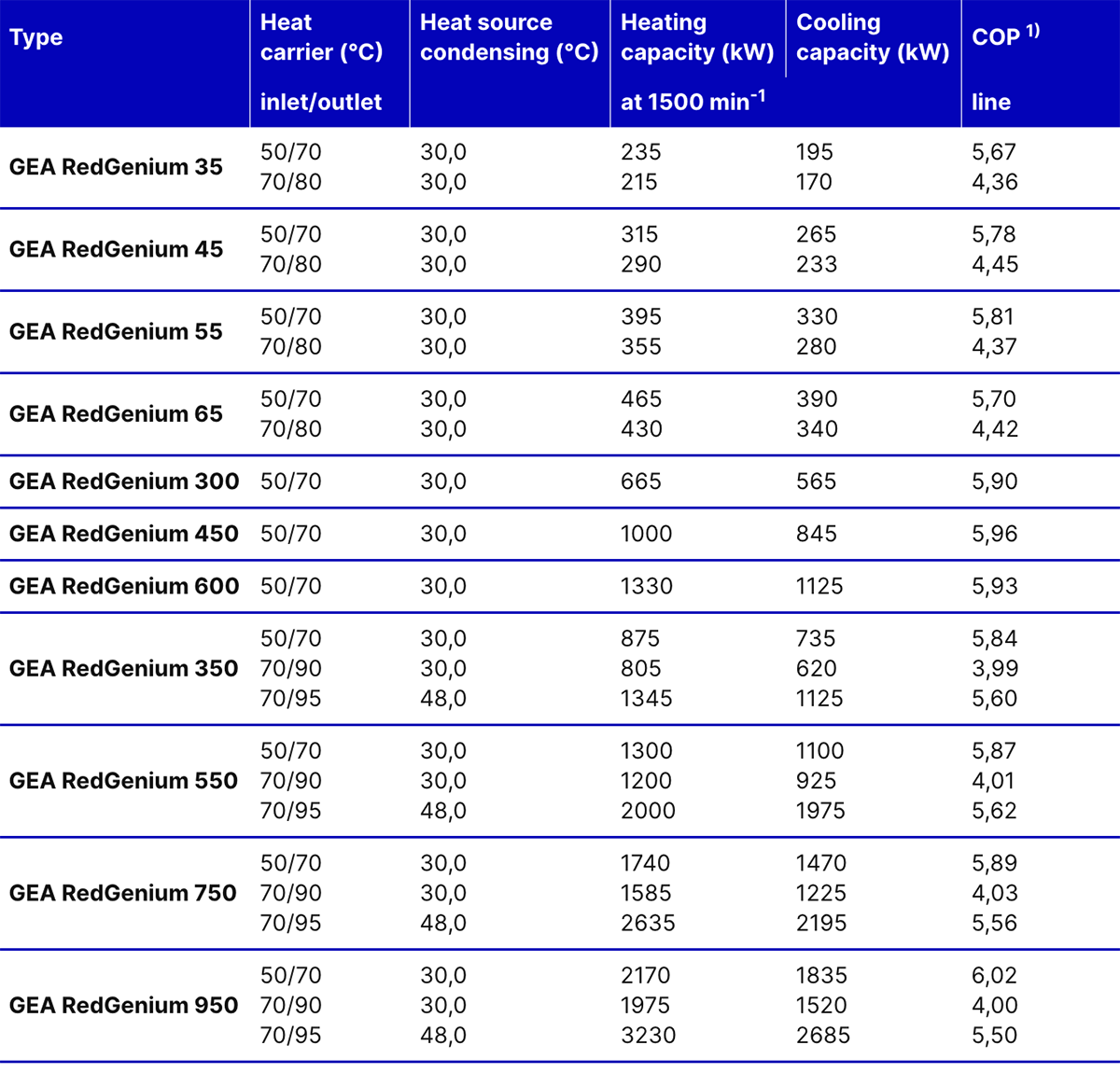

Alternatively, all GEA RedGenium heat pumps can be equipped with a cascade evaporator, directly charged with hot ammonia gas from a refrigeration plant, to efficiently recover waste heat.

Highlights and Technical Features

Energy-efficient solution carries the GEA Add Better Label. The GEA RedGenium V HP and V XHP standard reciprocating heat pump slashes electric consumption by an average of 25% compared to its previous solution. This translates to annual savings in energy and CO₂ emissions depending on the electric mix by the same percentage.
Future-proof with the natural refrigerant ammonia (R717) – in accordance with the F-gas regulation, the initiative for the prohibition of F-gases

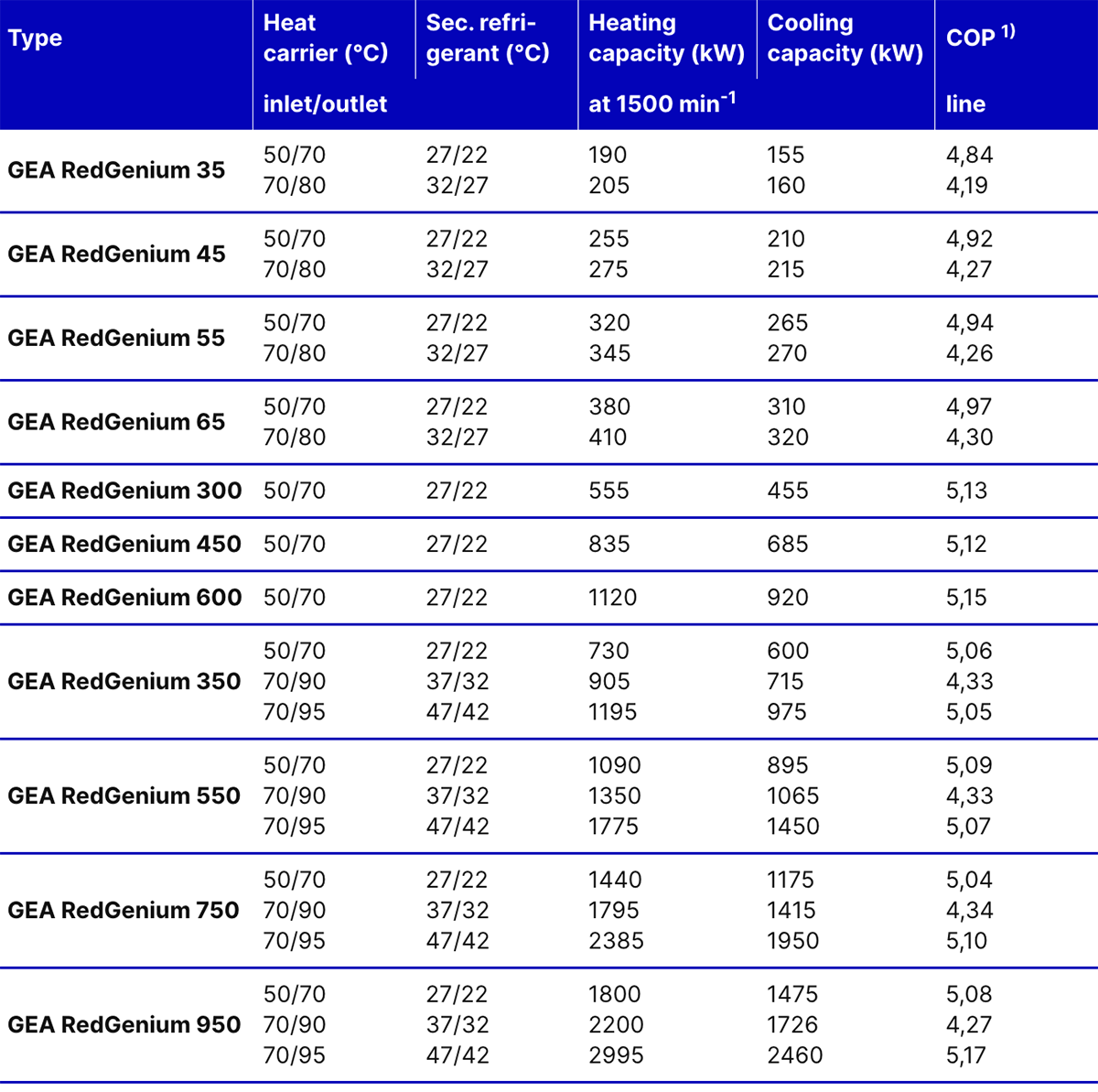

Heating capacity range approx. 200 to 3000 kW / 700 to 10200 MBH *)
Heat carrier supply temperatures up to 95°C / 203°F
Heat source temperature range between -10°C / +14°F (minimum outlet liquid heat source or sec. refrigerant medium) and up to 50°C / 122°F (maximum supply temperature, V XHP models up to 60°C / 140°F)
Combined cooling and heating possible
Ammonia cascade evaporator option for efficient “add-on” set-up to existing refrigeration systems
Fully welded shell & plate heat exchanger
Various plate materials available, all common liquids supported
Efficiency-optimized configuration with minimized energy costs and CO₂ emissions
Minimum footprint
Unit ready for connection, easy installation, minimum maintenance
Stepless capacity control via frequency inverter (variable speed range 500 – 1500 rpm) and cylinder switch-off
Industry-leading control technology with GEA Omni control pane
