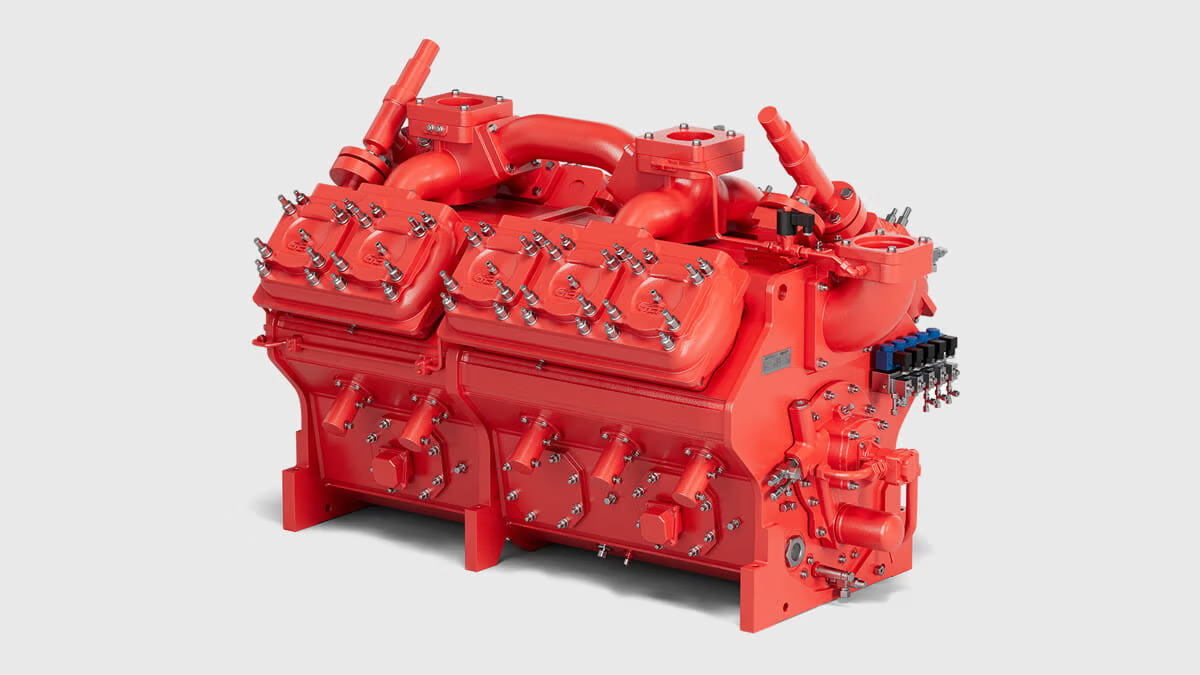

GEA GRASSO V XHP

The GEA Grasso V XHP compressors, that use natural refrigerants such as ammonia, are designed to minimize their environmental impact. With the ability to reach water temperatures of up to 95°C / 203°F and offering best-in-class efficiency, they are an ideal choice for heat pump systems.

GEA Grasso V series reciprocating compressors offer the efficiency, quality and reliability needed to achieve the lowest possible total cost of ownership (TCO) throughout their service life.

Sustainability

The V series is designed to use the natural refrigerant ammonia (R717) to achieve the highest efficiency. It can be used for heating and cooling applications, and can achieve hot water temperatures of up to 95°C / 203°F.

Reliability

The use of high-end materials and proven technology helps to ensure max. reliability. In addition to the standard benefits of the V series, a unique drain system and continuous safety monitoring are integrated in the design.

Service

The electronically measured flexible and extended service intervals, minimize maintenance costs during the long service life of these compressors.

Efficiency

A unique welded compressor housing minimizes thermal losses due to excellent suction and discharge separation. Optimized gas flow within the compressor results in high efficiency and very low oil carryover.

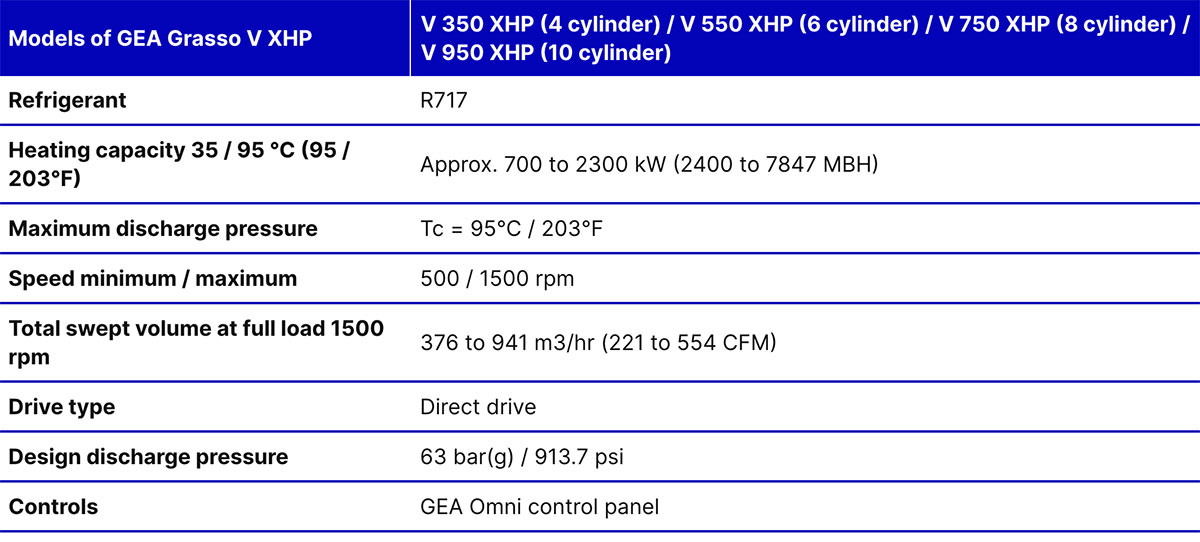

Highlights & Technical Features

Low total cost of ownership
Efficiency and capacities according to EN 12900 and EN 13771, best efficiency available
Unique, welded compressor housing for outstanding temperature separation
Low oil carryover
ISO VG 68 oil is approved to simplify the oil return design
No cylinder head cooling required
Low noise level
Designed for ammonia as a natural refrigerant: zero ODP, zero GWP
High-end materials and proven technology
Electronically controlled service intervals – minimize maintenance costs
Unique, integrated drain system to maximize reliability

In short, the new GEA V XHP has its roots in the trusted GEA V series philosophy, with efficiency in its DNA. Our reciprocating compressors are manufactured in ‘s-Hertogenbosch, Netherlands. We invite you to visit and see the precision and quality of our production process first-hand.
