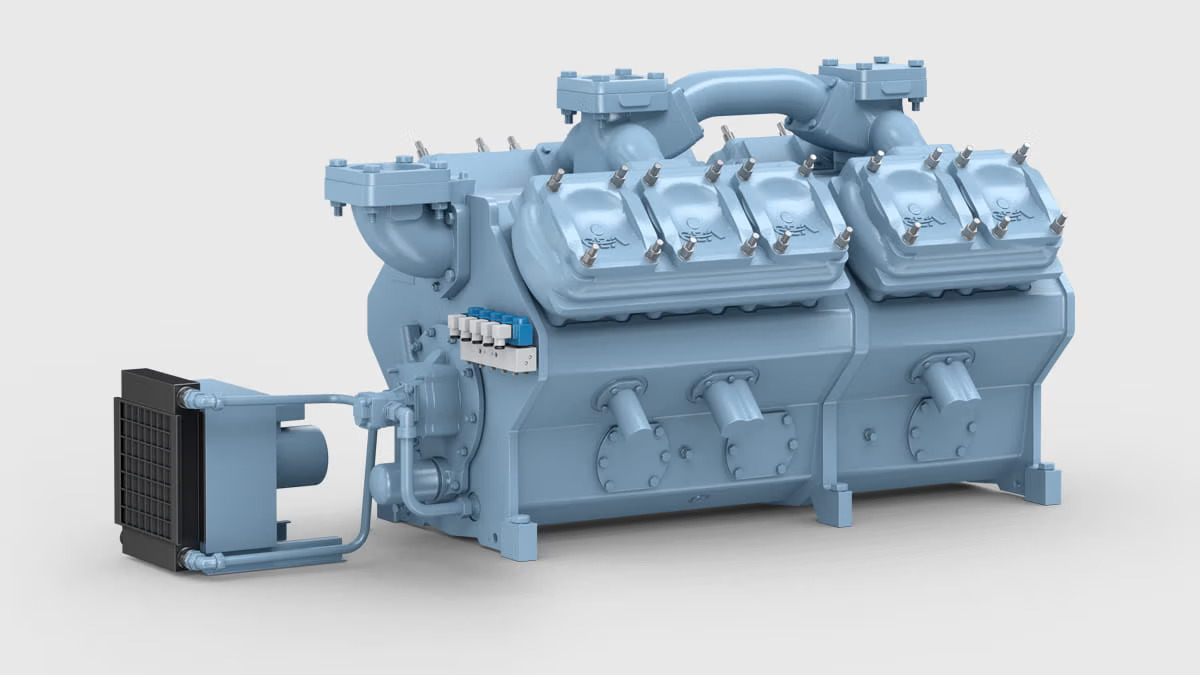

GEA GRASSO V HS

The high-speed version offers a higher refrigeration capacity along with a lower investment. The speed increase provides clients with a significant increase in capacity. Because of the proportional correlation of compressor speed, swept volume and resulting capacity, up to 25 % more capacity can now be gained using the same models. That returns a significant improvement (reduction) of the relative price per kilowatt. Alternatively, users with a specific, fixed capacity requirement can benefit from the higher speed by allowing them to achieve the capacity demands with smaller compressor equipment meaning less investment and less footprint. When the high-speed version is operating at lower speeds, it offers the same significant saving potentials for your Total Cost of Ownership, reduced footprint and CO₂ emissions as the normal Grasso V series.

GEA uses natural refrigerants, such as ammonia, to get the best from the GEA Grasso compressors, and help protect the environment for future generations.

GEA Grasso compressors are designed and produced in Europe. They bring together more than 100 years of design experience with market leading research and technology. GEA reciprocating compressors are manufactured in ‘s-Hertogenbosch, the Netherlands. You are invited to visit and see the precision and quality of the GEA production process first-hand.

Innovation

GEA has always invested in reciprocating technology with a clear vision for the future. The all new, 2nd Generation Grasso V reciprocating compressors follow this trend. They have all the key features of the previous Grasso V models, but better:

Up to 25% lower maintenance costs

New, improved bearing materials give better resistance to ammonia liquid and continual start/stops. This means maintenance intervals can be extended, reducing labor and parts costs over the lifetime of the equipment.

Up to 25% more capacity for the same investment

The increased swept volumes, created through higher compressor speeds, give up to 25% more capacity, resulting in a lower investment per kW cooling capacity and, in most cases, a smaller footprint.

Highlights and Technical Features

• Increased capacity: providing more capacity reduces investment costs
• Reduced footprint: use smaller compressors at higher speed
• Designed for ammonia as a natural refrigerant: zero ODP (Ozone Depletion Potential), zero GWP (Global Warming Potential)
• Unique, welded compressor housing for outstanding temperature separation
• Extended and flexible maintenance intervals through real-time measurement (up to 22.500 hours)
• High-end bearing technology for maximum service life
• Suction and discharge valve design for maximum reliability and long life

Key figures

• Swept volume range from 348 to 1992 m³/h / 204 to 1,172 cfm, variable speed up to 1800 rpm
  4, 6, 8, or 10 cylinders for single- or two- stage operation

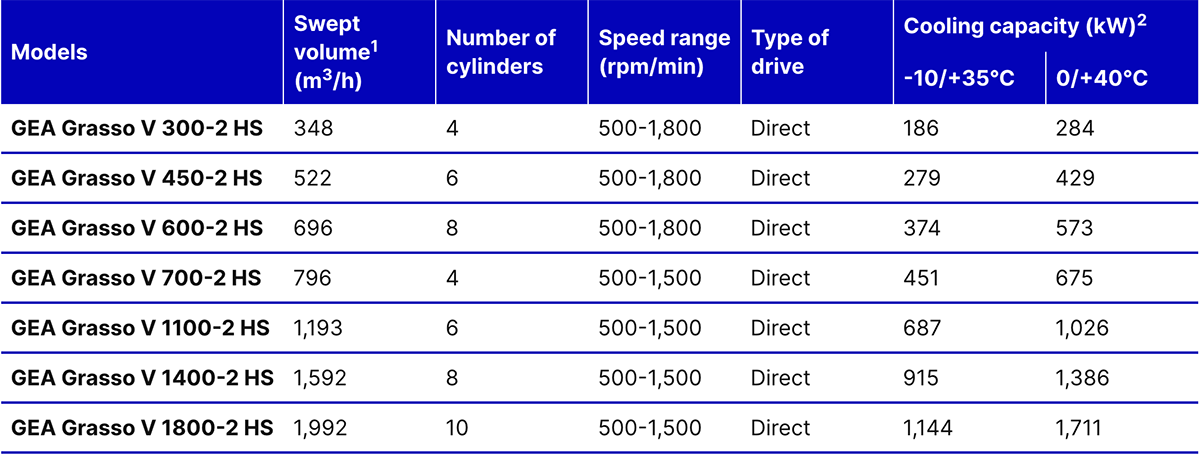

GEA Grasso V HS (metric units)

Medium/Large series, NH₃ freezing applications 25 bar – single stage

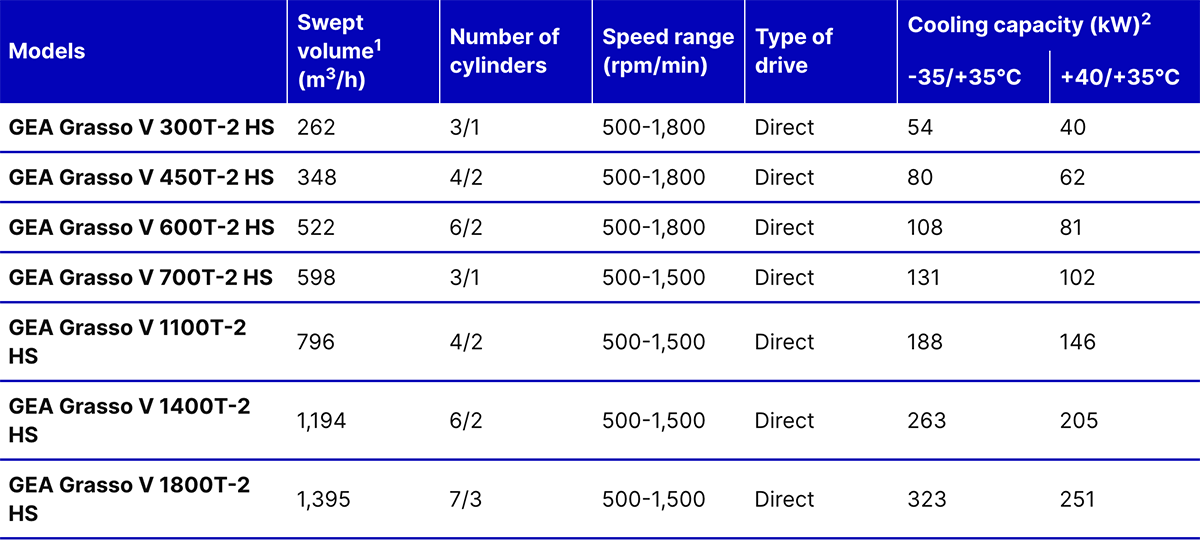

GEA Grasso VT HS (metric units)

Medium/Large series, NH₃ freezing applications 25 bar – two stage

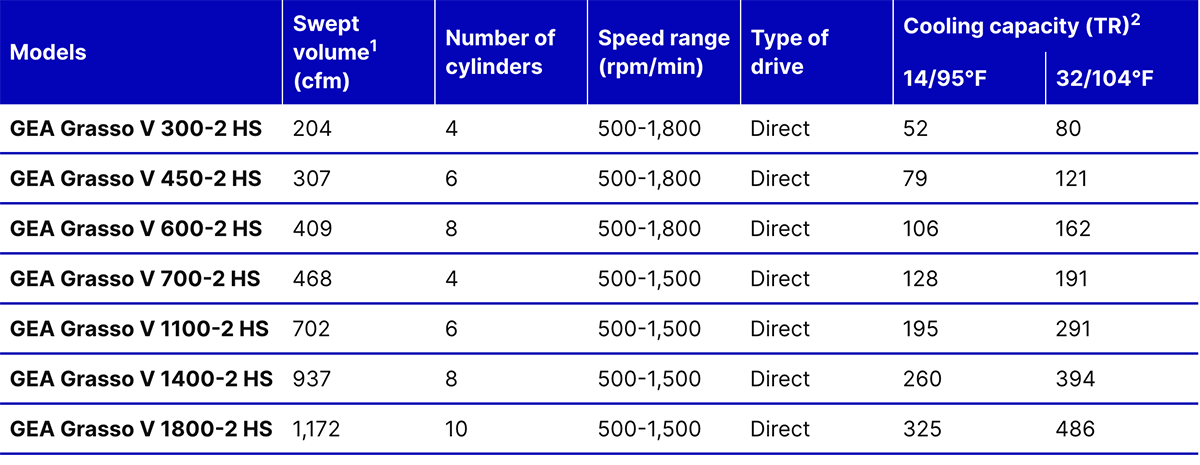

GEA Grasso V HS (imperial units)

Medium/Large series, NH₃ freezing applications 362 psi – single stage

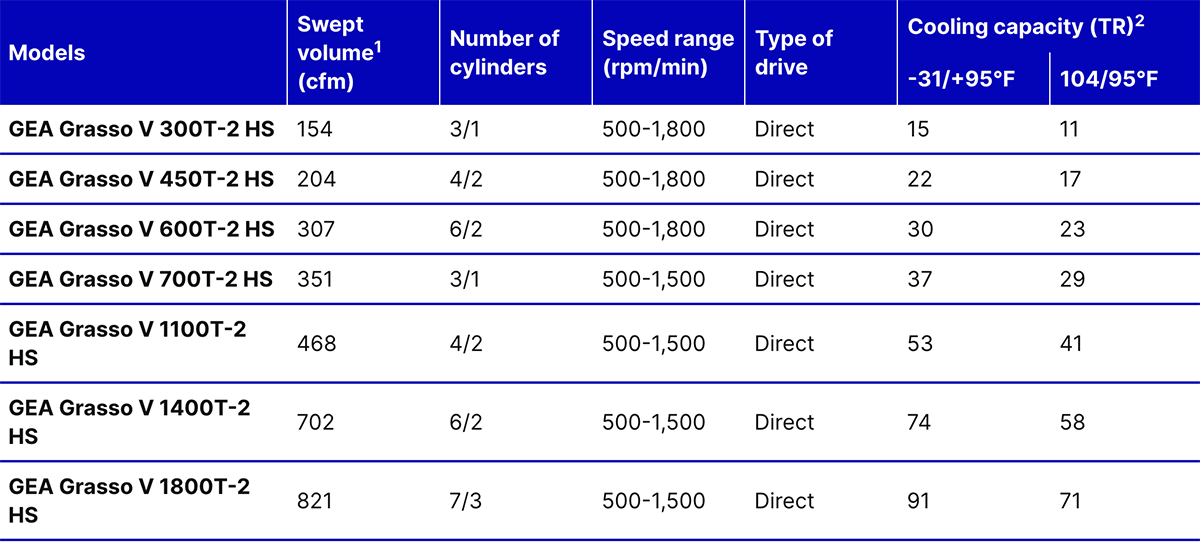

GEA Grasso VT HS (imperial units)

Medium/Large series, NH₃ freezing applications 362 psi – two stage

1 Theoretical swept volume based on max. speed mentioned in the table
2 Capacity based on package with 2K non-useful superheat & 0K subcooling (two-stage on open flash C interstage cooler)
