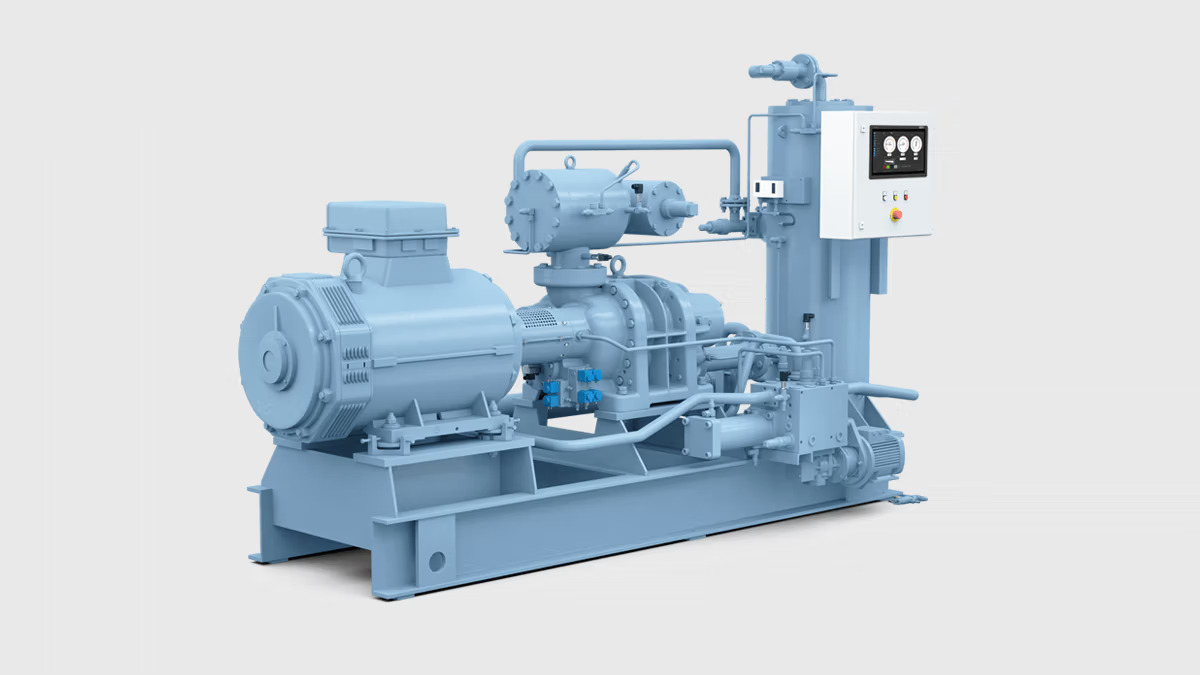

GEA GRASSO SP1

The GEA Grasso SP1 series of single-stage screw compressor packages has been designed to cover highly individual needs from medium to the largest cooling capacity range.
The GEA Grasso SP1 series is particularly attractive for its versatility, whether in the food industry or in a high-pressure version for CO2, in a heat pump installation or in an explosion-proof set-up for chemical application. Our customers can select from a multitude of options and customize the packages to all individual needs.

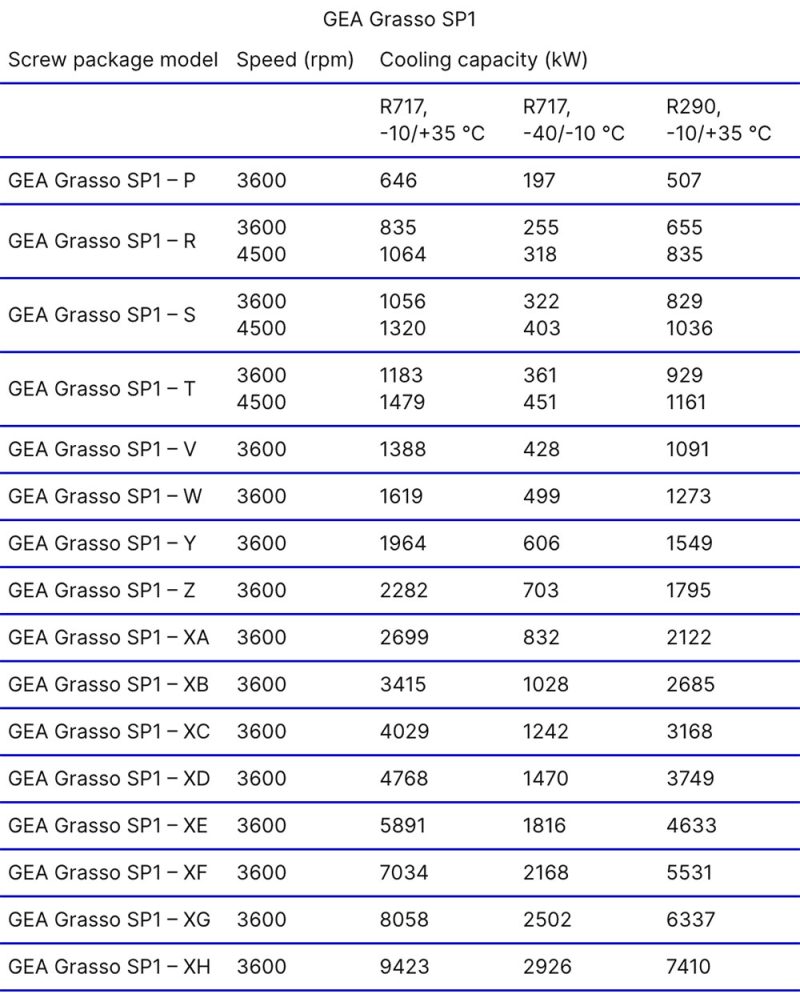

The series consists of 16 models from 638 kW to 9,423 kW (R717 | –10 / +35 °C | 3,600 rpm) refrigeration capacity.

GEA Grasso SP1 horizontal variant

9 models from 638 kW to 2,667 kW (R717 | -10/+35°C | 3,600 rpm) are available in a horizontal oil separator design. This variant offers up to 20% less footprint than the vertical version but otherwise performs identically.

GEA Grasso SP1 HP variant

HP stands for high pressure, and this version is specifically designed for Ammonia heat pump and subcritical CO2 applications. The series is available with screw compressor sizes (frame size) from E to XA (R717 heat pumps to XD).

Highlights & Technical Features

• Widest range of single-stage screw compressor packages
• Individual and customized set-up for various applications and industries
• Horizontal design version for up to 20 % reduced footprint
• Stepless capacity control via frequency inverter and/or slide system
• GEA Omni control panel with high-definition 15.6″ touch screen
• Variable speed drive motors (optional) with speed range 1,500 – 3,600 rpm (R to T models 1,500 – 4,500 rpm)
