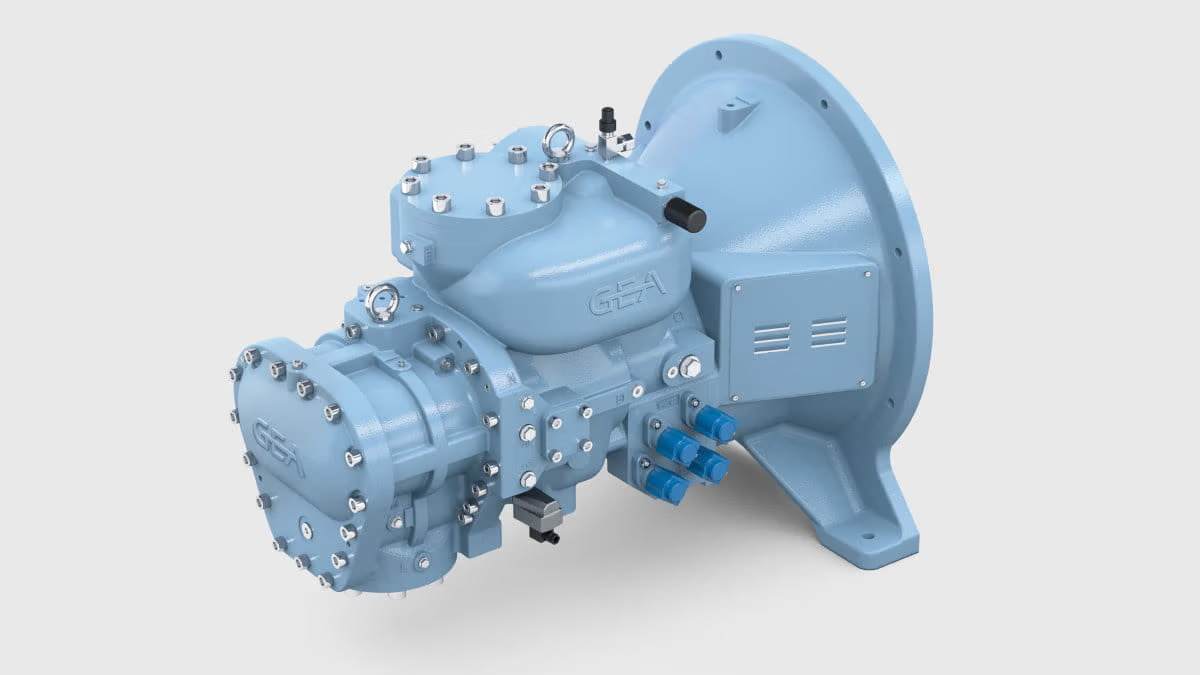

GEA GRASSO M SERIES

The GEA Grasso M series comes in eight sizes with a swept volume ranging from 231 to 870 m³/h / 136 to 512 cfm (at 2,940 rpm).

GEA Grasso M compressors are the ﬁrst screw compressors with an integrated pressure-activated check valve ensuring low pressure drop.

The integration of the suction ﬁlter and coupling housing greatly simplify assembly of the package. The outstanding energy-efficiency of these compressors is based on the inﬁnitely adjustable capacity combined with the extended variable Vi-range (internal volume ratio). The variable speed from 1,000 to 6,000 rpm ensures a wide operation range and maximum efficiency in full and part load.

Highlights & Technical Features

Outstanding energy-efficiency
Easy package assembly
Designed for ammonia (R717) and all other common refrigerants
Available according to API 619 and ISO 10440 standard
Swept volume: 231 – 870 m³/h / 136 to 512 cfm at 2,940 rpm
Speed range: 1,000 – 6,000 rpm
Design pressure: 28 bar, 52 bar / 406 psi, 754 psi

<p>Your web browser does not support iframes, which means that the video cannot play.</p>

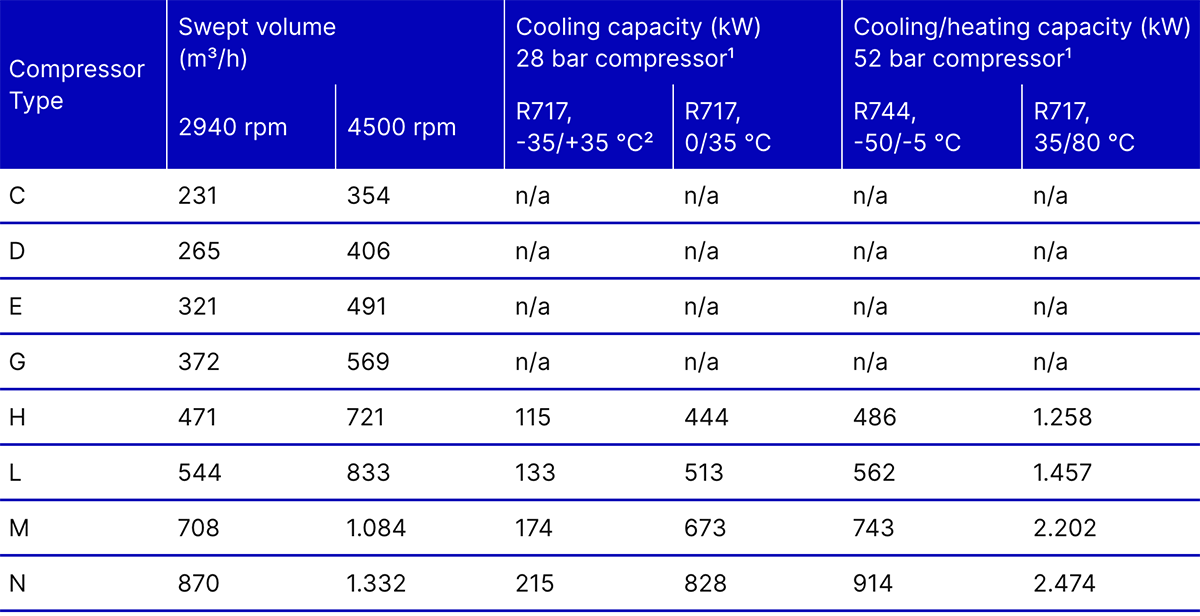

GEA Grasso M series (metric units)

¹ at 2940 rpm with 5 K superheat and 0 K subcooling, stated temperature values:
evaporation/condensation
² with economizer

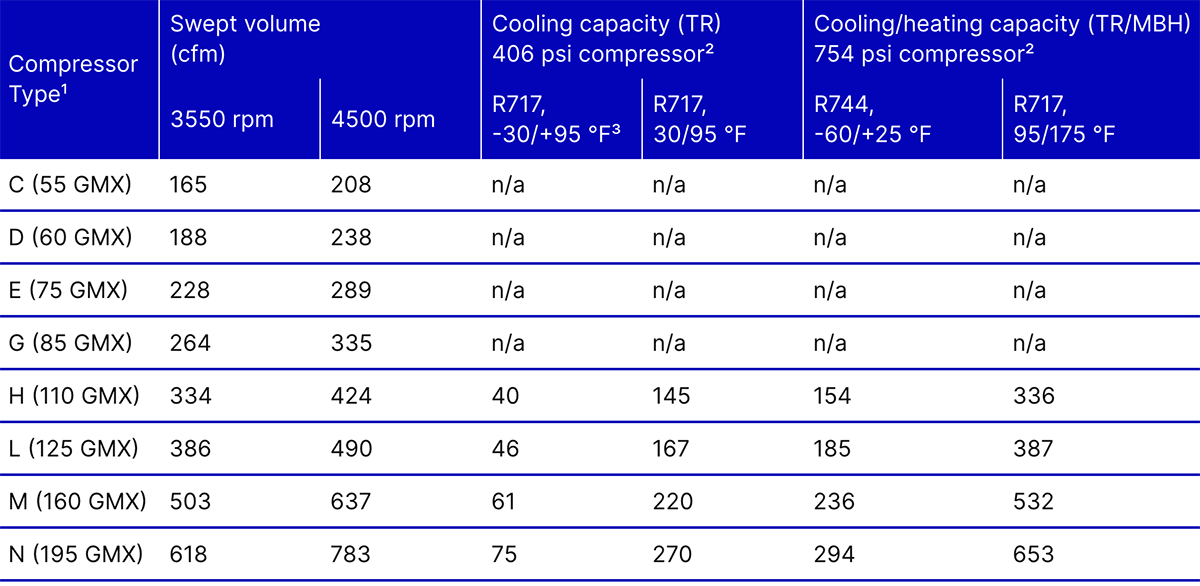

GEA Grasso M series (imperial units)

¹ in parenthesis corresponding GEA FES screw compressor package model
² at 3550 rpm with 9 °F superheat and 0 °F subcooling, stated temperature values:
evaporation/condensation
³ with economizer
