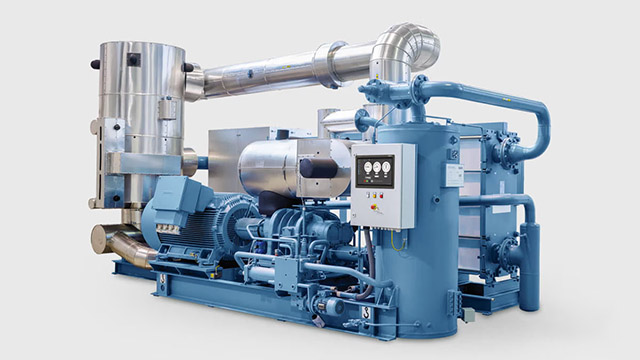

GEA GRASSO FX P / GEA GRASSO FX PDUO

The GEA FX P / GEA FX Pduo series is the industrial standard for applications with large temperature differences between evaporation and condensation. For freezing and cooling applications the range covers virtually all conceivable applications with a capacity from 200 to 5,800 kW.

Technical features

• Wide application range as chiller, heat pump (28bar), or alternating machine
• Flexible and modular design
• Stepless capacity control with capacity slide and frequency inverter
• Automatic and variable internal volume ratio (Vi)
• High-efficiency plate heat exchangers as evaporators and condensers
• Liquid cooled condenser by default, suitable for other condenser types

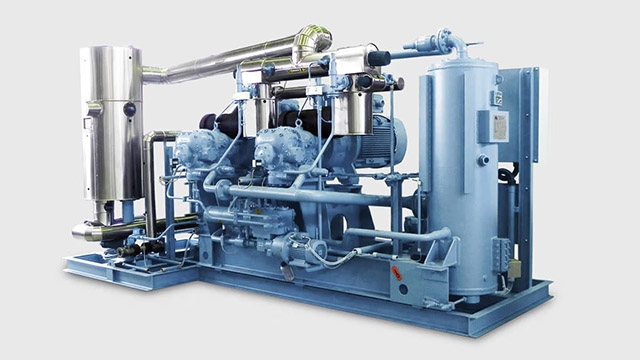

• Screw compressor chillers with 1 or 2 compressors (FX P or FX Pduo)
• Low discharge temperatures even at high pressure ratios
• Economizers as option

¹) Secondary refrigerant temperature 12/6 °C, cooling medium temperature 27/32 °C
