Driving performance

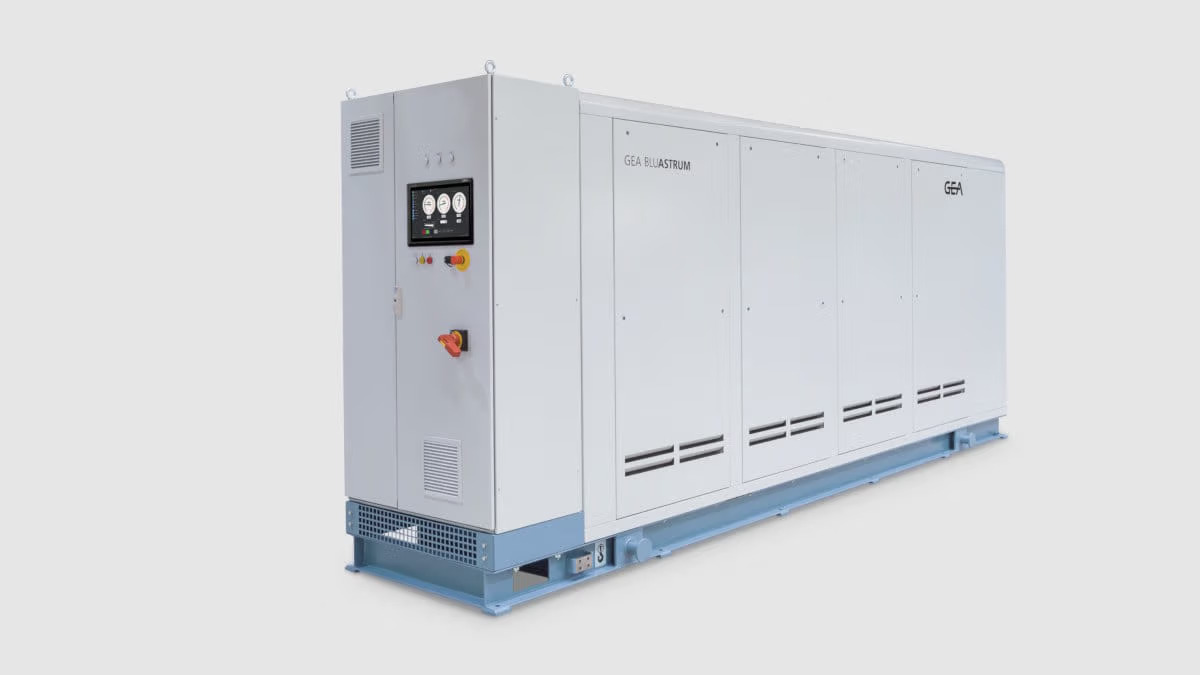

GEA BLUASTRUM

GEA BluAstrum provides an economical entry into the GEA Blu chiller family, without compromises regarding the technological concept.

This chiller series is especially characterized by minimal maintenance requirements and an extremely slim model design that fits through standard door-sizes. The little dynamic movement of the chiller components contributes to low maintenance requirements. In addition, the width of only 1.0 to 1.2 m and the resulting small footprint allows simple transport as well as relocation of the chiller and installation in cramped machine rooms.

What are the main highlights and technical details of the GEA BluAstrum chiller?

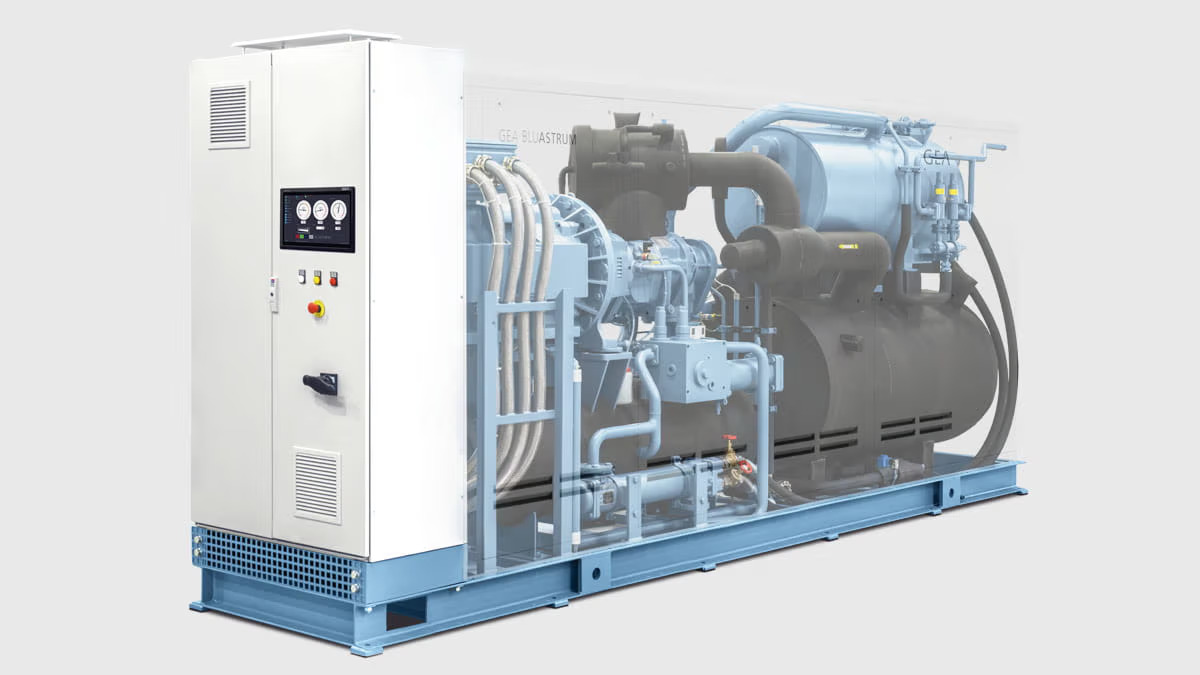

Compact screw chiller
Minimum maintenance requirements
Extremely compact equipment size
Cooling capacity 390 – 1,730 kW (R717, 12/6 °C)
Secondary refrigerant outlet temperature -15/18 °C
Remote version available (without condenser)
Casings for touch protection and noise reduction optionally available

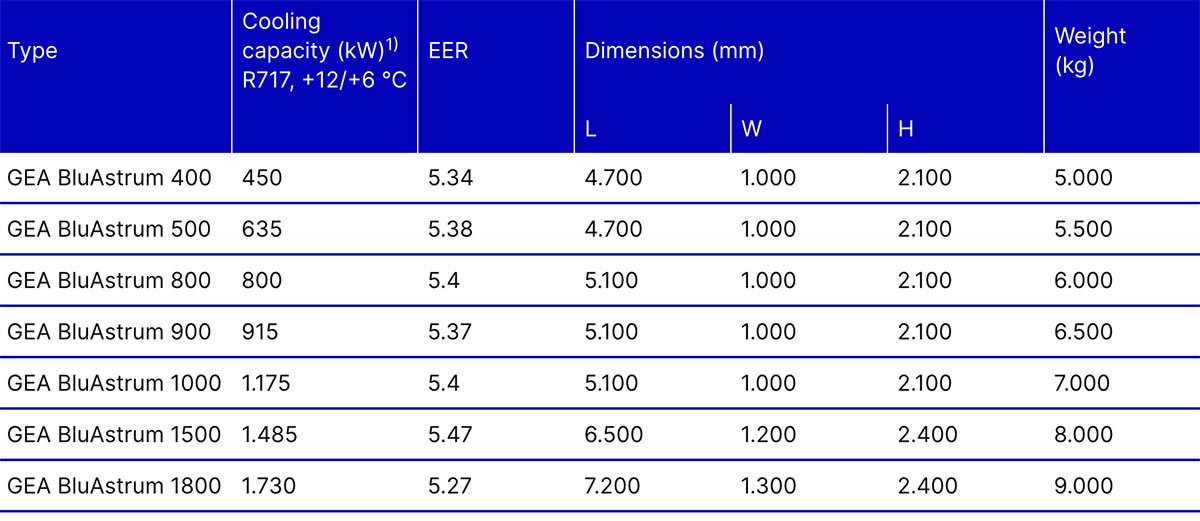

1) For air conditioning with cooling water temperatures of 30°C inlet and 35°C outlet.
Double power panel with access on the long side of the chiller from 355 kW motor size up
