GEA BLUASTRUM (NORTH AMERICA)

GEA BluAstrum chillers deliver high efficiency, sustainability, and flexibility for a wide range of industrial cooling applications. With nine standard model sizes and a design based on the proven GEA FES GMX and GLX screw compressor packages, GEA BluAstrum ensures reliable performance, minimal maintenance, and ultra-low refrigerant charge. Its compact footprint and versatile installation options make it ideal for meeting diverse customer requirements.

Key features and benefits

• Minimal maintenance requirements

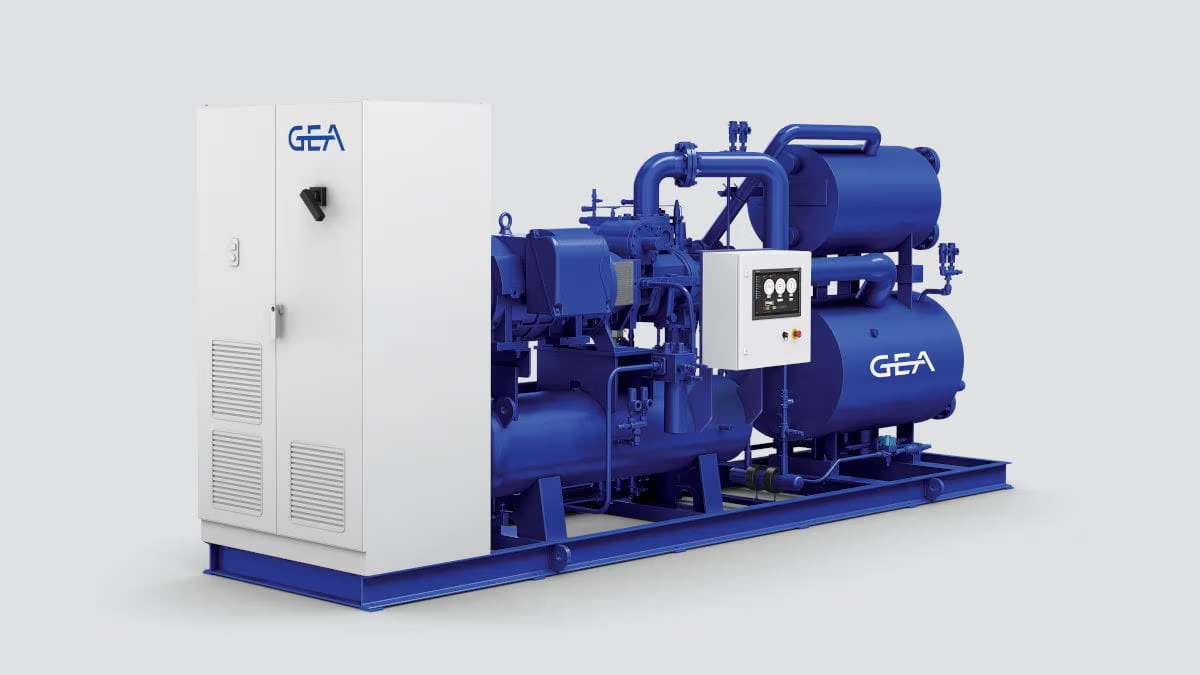

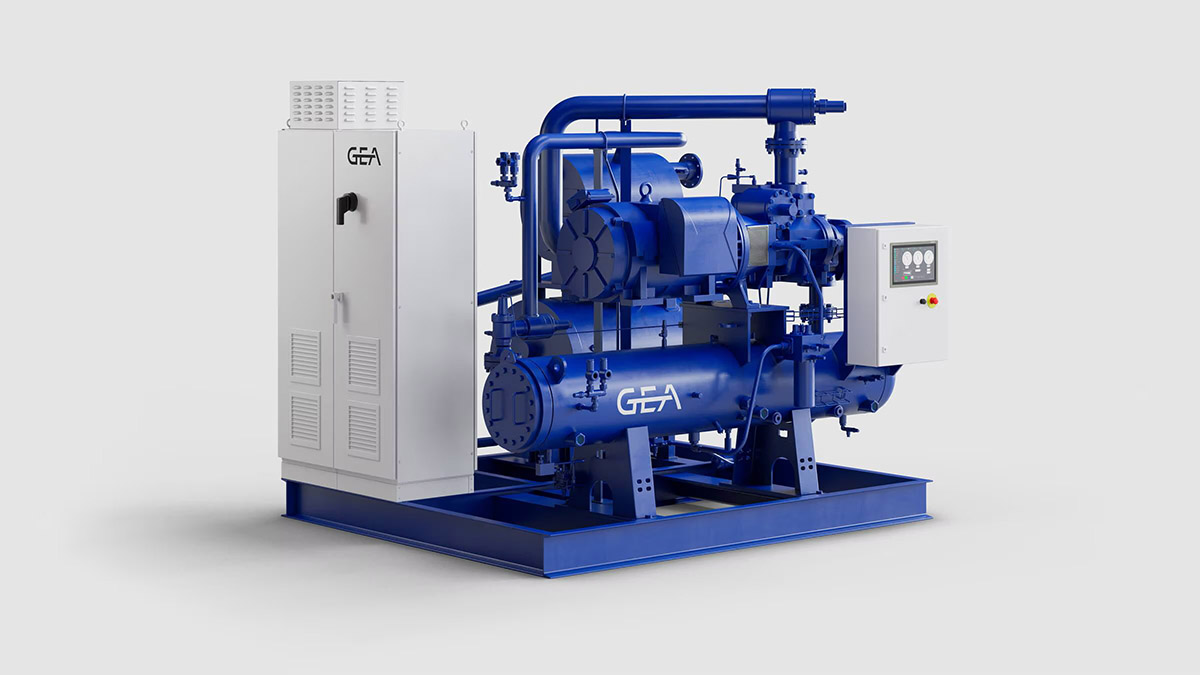

• Compact design with in-line and side-by-side layout
• Wide cooling capacity range – approximately 100 to 700 TR / 350 to 2450 kW
• Process fluid outlet temperature range from -20° to 64 °F / – 29° to 18 °C (lower temperatures on request)
• Ultra-low refrigerant charge and environmentally friendly refrigerant (no phase-out)
• Nine standard model sizes
• High-efficiency and compact shell & plate heat exchangers
• Advanced screw compressor technology with variable speed control and variable Vi
• High part load capabilities
• GEA Omni control panel
• Remote version without condenser available (with or without pilot receiver)
• Designed for indoor and outdoor installation, low-noise operation

Technical data

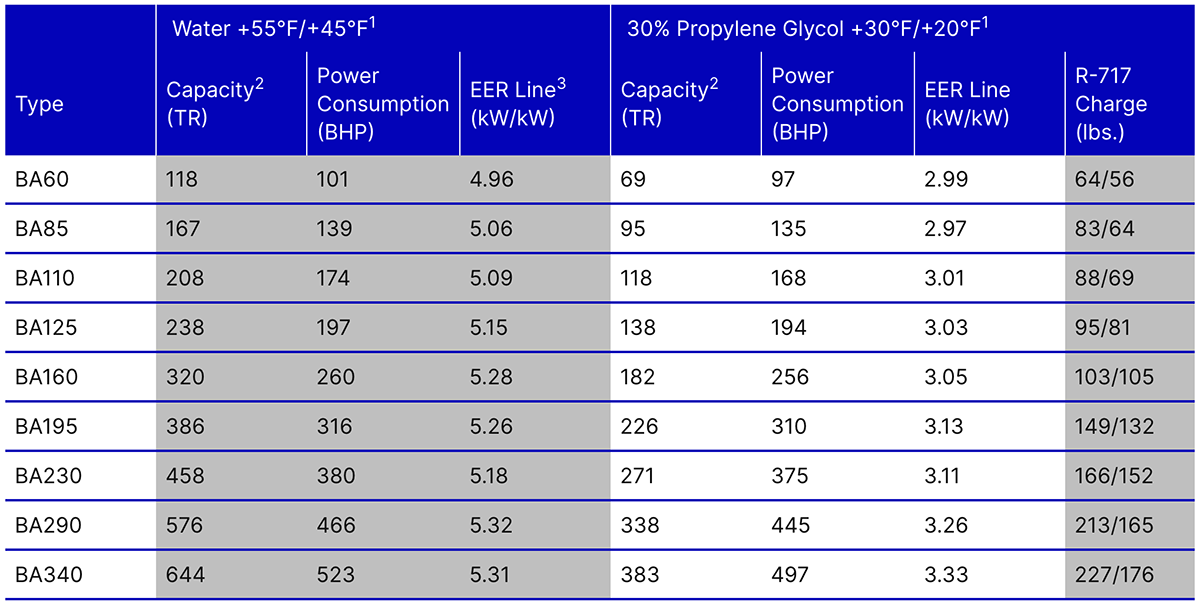

GEA BluAstrum (North America) – Maximum sizes and capabilities
